Overview
The ZEK-05 is Zepkvor’s own ESP32 development board, built for learning and rapid prototyping. It pairs the powerful ESP32-WROOM-32E module — with Wi-Fi and Bluetooth — with a modern USB-C port and a reliable DTR/RTS auto-reset circuit, so uploading code is fast and hassle-free.
Whether you’re blinking your first LED, building a sensor network, or prototyping an IoT product, the ZEK-05 gives you all 38 pins broken out, clear onboard buttons, and dependable power regulation — everything you need to go from idea to working prototype.
Product Video
Key Features
- ESP32-WROOM-32E module — 240 MHz dual-core, Wi-Fi + Bluetooth
- USB-C port with CH340 USB-to-serial bridge (driver required on first use)

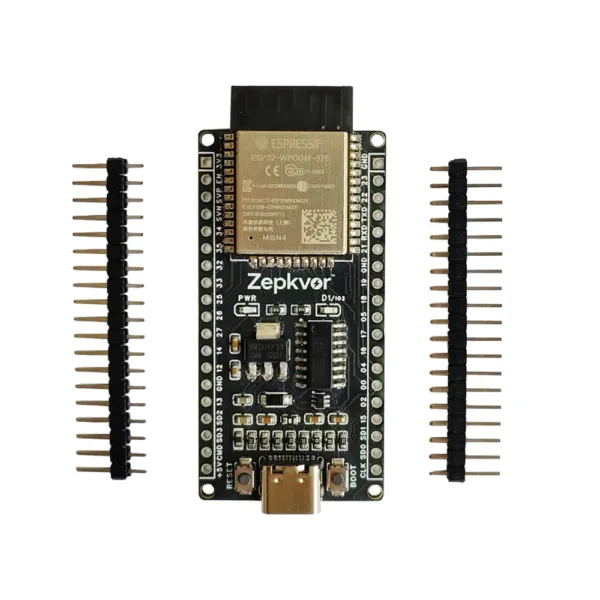

- 38 pins all broken out; BOOT (IO0) and RESET (EN) buttons on board
- User LED on GPIO2 plus a separate power LED
- AMS1117-3.3 voltage regulator
- DTR/RTS auto-reset circuit — upload code without holding BOOT
- Ships with 2 × pin header rows (unsoldered); USB-C data cable not included
Tutorials & Guides
CH340 Driver Installation Guide
Install the driver so your computer detects the board — steps for Windows, macOS and Linux.
ESP32 Quick-Start Guide
From first plug-in to Blink and Wi-Fi scan with Arduino IDE.
Coming soon
Specifications
| Model | ZEK-05 |
| Wireless module | ESP32-WROOM-32E |
| USB | Type-C, CH340 USB-to-serial |
| Pins | 38, all broken out |
| Buttons | BOOT (IO0), RESET (EN) |
| LEDs | User LED on GPIO2, power LED |
| Regulator | AMS1117-3.3 |
| Auto-reset | DTR/RTS, no BOOT hold needed |
What’s in the Box

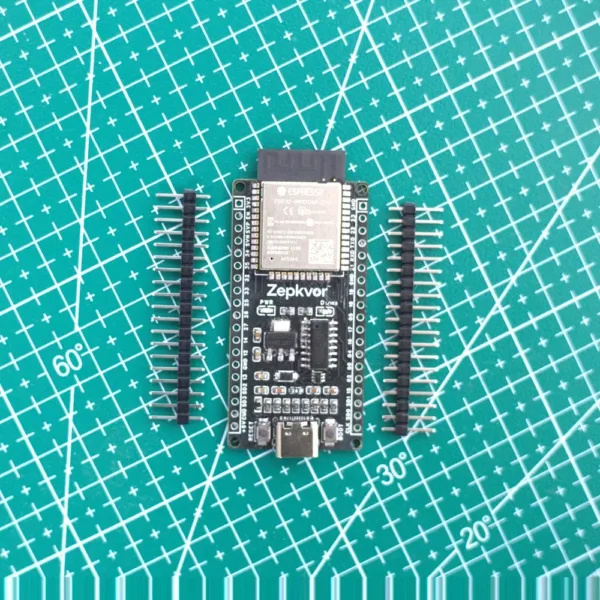

- 1 × ZEK-05 development board
- 2 × pin header rows (unsoldered)
Reviews
There are no reviews yet.
